Coil Nailers- CN65WP, CN65WPII

DIMENSION

► 300x135x320mm
► 2.74 KGS / 6.04 LBS

FASTENER

► CN65WP
Shank dia: 2.1-2.5mm ( 0.083”-0.099”)
Head dia: 5.0-6.0mm

► CN65WPII
Shank dia: 2.5-2.9mm ( 0.099”-0.113”)
Head dia: 6.0-7.0mm

► COLLATIONS: Wire/ Plastic Sheet

► LENGTH: 32mm - 65mm (11/4"-21/2")

APPLICATION

Fencing、Siding、Sheathing、Roof decking、Subflooring、Decking

Coil Nailers: CN65WP, CN65WPII, CN90, CN70HD, CN57HD, CN50WP
CN65WP, CN65WPII
Coil Nailers: CN65WP, CN65WPII, CN90, CN70HD, CN57HD, CN50WP

Coil Nailers- CN90

DIMENSION

► 300x98x370mm
► 3.44 KGS / 7.58 LBS

FASTENER

► Nail shank dia.: 2.5-3.33mm( 0.099”-0.131”)
► Nail length: 50-90mm( 2”-3
1/2”)
► Nail angle: 15°
► Collation type: Wire/ Flat

APPLICATION

Decking、Crating、Pallets、Packaging、Fencing、Sheathing

COMPLEMENTS

► Extremely powerful for heavy duty applications
► Rapid fire trigger valve
► 360∘adjustable exhaust deflector
► Low noise & vibration

► Tool specification:

- Loading capacity: 300 nails
- Air consumption: 0.07 ft³ /cycle at 90 psi

CN90
Coil Nailers: CN65WP, CN65WPII, CN90, CN70HD, CN57HD, CN50WP

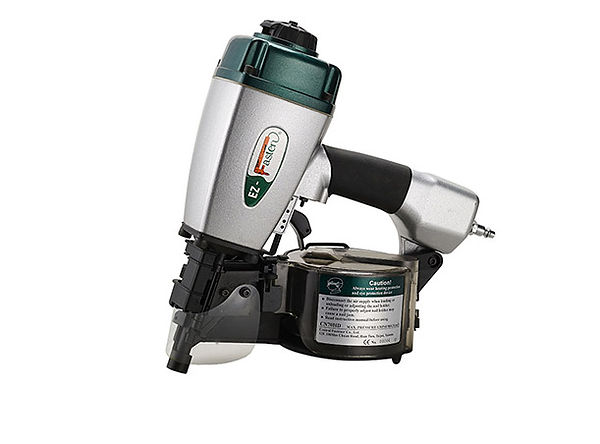

Coil Nailers-CN70HD

DIMENSION

► 300x98x330mm
► 3.12 KGS / 6.87 LBS

FASTENER

► Nail shank dia.: 2.5-2.9mm( 0.099”-0.113”)
► Nail length: 45-70mm( 1
3/4”-2 3/4”)
► Nail angle: 15°
► Collation type: Wire/ Flat

APPLICATION

Decking、Crating、Pallets、Packaging、Fencing、Sheathing

COMPLEMENTS

► Extremely powerful for heavy duty applications
► Rapid fire trigger valve

► Low noise & vibration

► Tool specification:

- Loading capacity: 225~300 nails
- Air consumption: 0.0522 ft³ /cycle at 90 psi

CN70HD
CN57HD
Coil Nailers: CN65WP, CN65WPII, CN90, CN70HD, CN57HD, CN50WP

Coil Nailers-CN57HD

DIMENSION

► 270x90x275mm
► 2.53 KGS / 5.58 LBS

FASTENER

► Nail shank dia.: 2.1-2.5mm( 0.083”-0.099”)
► Nail length: 25-57mm( 1”-2
1/4”)
► Nail angle: 15°
► Collation type: Wire/ Flat

APPLICATION

Decking、Crating、Pallets、Siding、Fencing、Sheathing

COMPLEMENTS

► Extremely powerful for heavy duty applications
► Rapid fire trigger valve
► Low noise & vibration

► Tool specification:

- Loading capacity: 225~300 nails
- Air consumption: 0.0522 ft³ /cycle at 90 psi

CN50WP
Coil Nailers: CN65WP, CN65WPII, CN90, CN70HD, CN57HD, CN50WP

Coil Nailers- CN50WP

DIMENSION

► 295x250x110mm
► 1.47 KGS / 3.23 LBS

FASTENER

For wire welded nails:

► Nail shank dia.: 2.1mm (0.083”)
► Nail length: 25-50mm(1”-2”)

For plastic sheet collated nails:

► Nail shank dia.: 1.59mm (0.063”)
► Nail length: 22-38mm (7/8”-11/2”)
► Nail shank dia.: 1.83mm( 0.072”)
► Nail length: 38-45mm (11/2”-13/4”)
► Nail shank dia.: 2.1mm(0.083”)
► Nail length: 50mm( 2”)

APPLICATION

Wood assembly、Interior construction、Subfloors、Cabinet work、Finishing paneling

COMPLEMENTS

► Wire welded nails are equivalent to Hitachi NV50A1, NV50AH, Max CN-450S, CN-550S
► Plastic sheet collated nails are equivalent to Max CN-450S, CN-550S
► Drives both plastic sheet and wire collated coil nail
► Equipped with no mark pad
